Home > 60A 12V/24V PWM Solar Panel Regulator Charge Controller Auto Focus Tracking

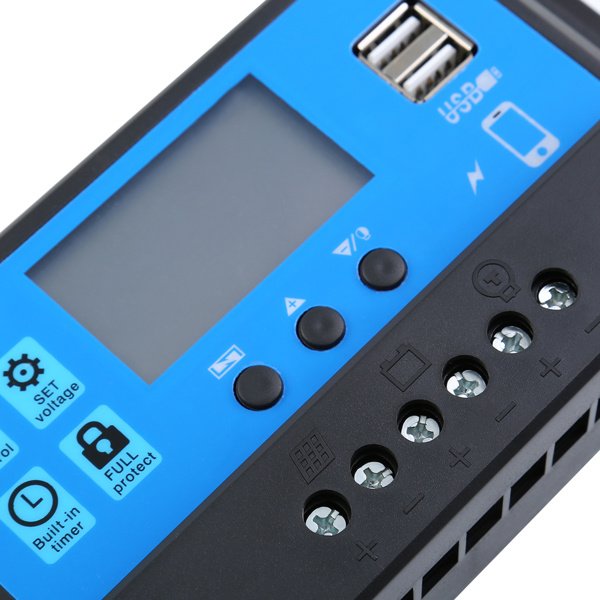

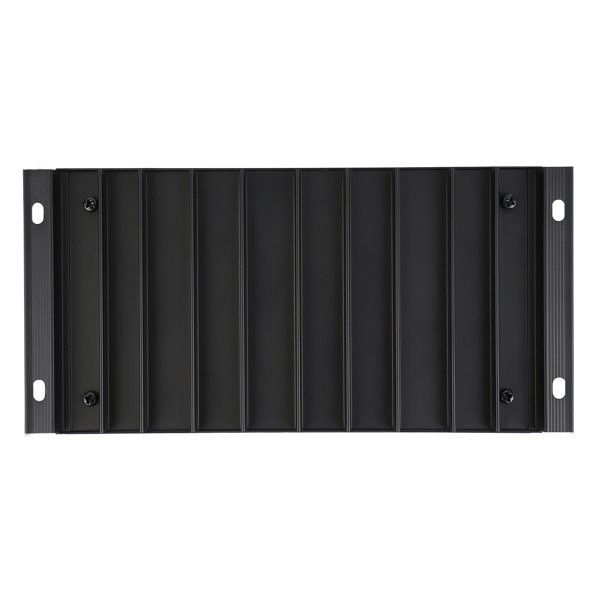

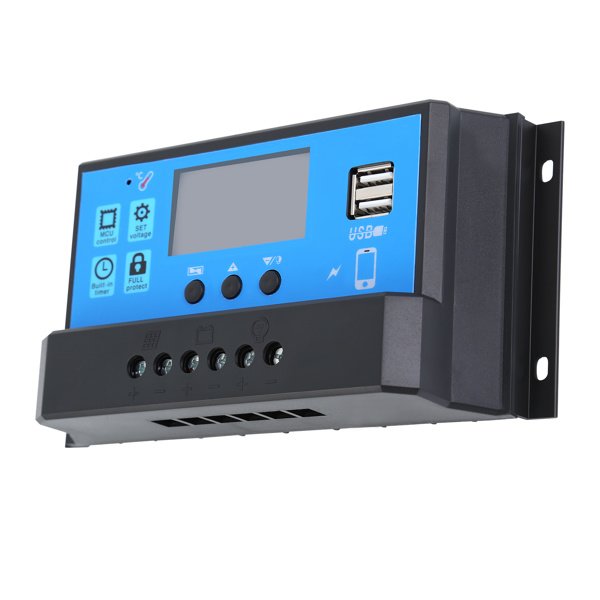

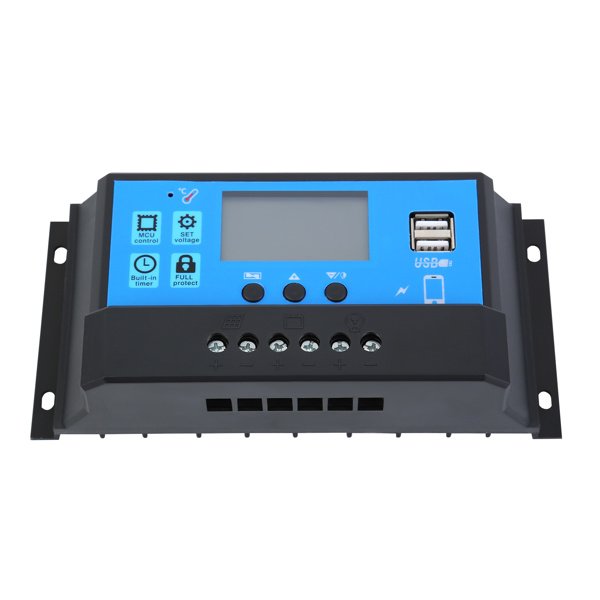

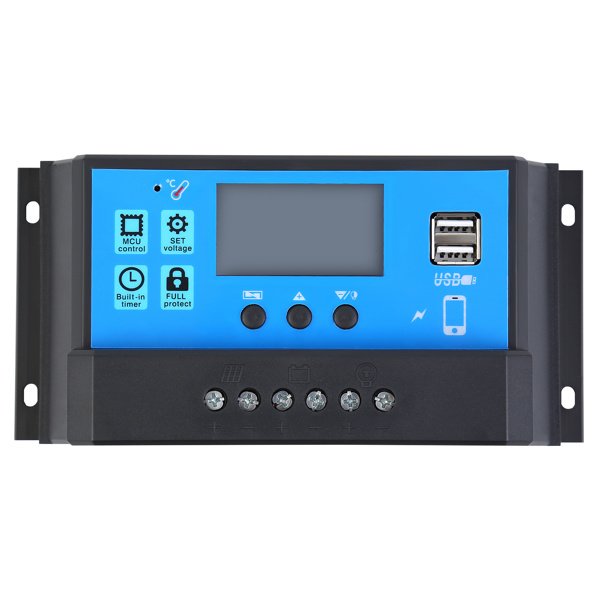

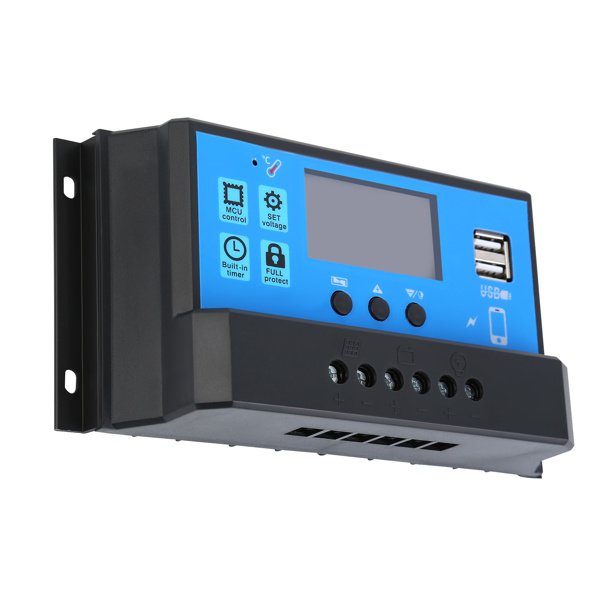

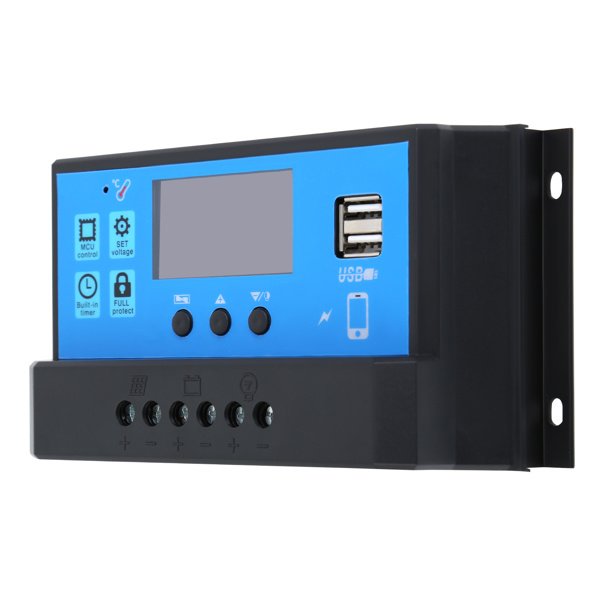

60A 12V/24V PWM Solar Panel Regulator Charge Controller Auto Focus Tracking

60A 12V/24V PWM Solar Panel Regulator Charge Controller Auto Focus Tracking 60A 12V/24V PWM Solar Panel Regulator Charge Controller Auto Focus Tracking 60A 12V/24V PWM Solar Panel Regulator Charge Controller Auto Focus Tracking 60A 12V/24V PWM Solar Panel Regulator Charge Controller Auto Focus Tracking 60A 12V/24V PWM Solar Panel Regulator Charge Controller Auto Focus Tracking 60A 12V/24V PWM Solar Panel Regulator Charge Controller Auto Focus Tracking 60A 12V/24V PWM Solar Panel Regulator Charge Controller Auto Focus Tracking 60A 12V/24V PWM Solar Panel Regulator Charge Controller Auto Focus Tracking 60A 12V/24V PWM Solar Panel Regulator Charge Controller Auto Focus Tracking 60A 12V/24V PWM Solar Panel Regulator Charge Controller Auto Focus Tracking 60A 12V/24V PWM Solar Panel Regulator Charge Controller Auto Focus Tracking 60A 12V/24V PWM Solar Panel Regulator Charge Controller Auto Focus Tracking
$17.91
D0102HGJ2YV
Add to Cart
Details:

Features:



  • 12V, 24V automatic recognition
  • Dual MOS anti-backflow circuit, ultra-low heat
  • Built-in over-current/short-circuit protection, reverse connection protection, all automatic recovery, no damage to the controller
  • Complete 3-stage PWM charging management
  • High-performance chip, multiple protection, light control and time control
  • Easy installation




Specification:



  • Model: YJSS60
  • System voltage: 12V/24V automatic identification
  • Rated charging current: 60A
  • Rated discharge current: 20A
  • The highest photovoltaic voltage: 12V system <25V/24V system <50V
  • Boost charging voltage: b3 open type 14.6V
  • Float voltage: b1/14.4V, b2/14.2V, b3/14.6V, (adjustable range: 13V-15V)
  • Discharge cut-off voltage: 10.7V, (adjustable range: 9.5V-11V)
  • Discharge recovery voltage: 12.6V, (adjustable range: 11.5V-13V)
  • Standby current: <10mA

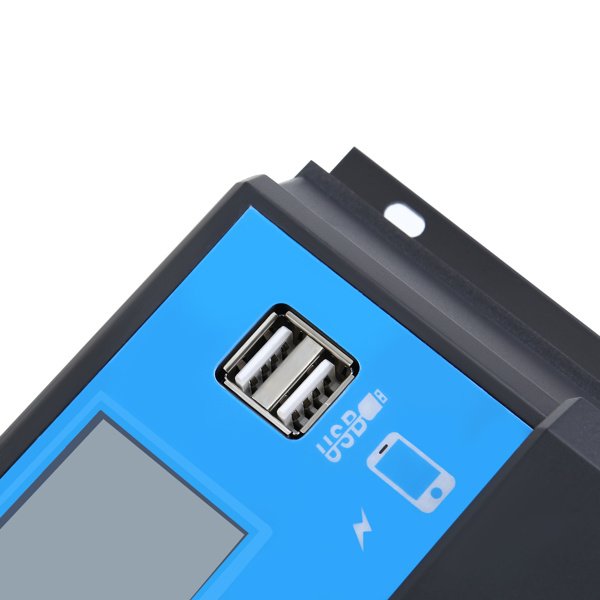

  • USB output: 5V/2A Max
  • Working temperature: -35~+60℃

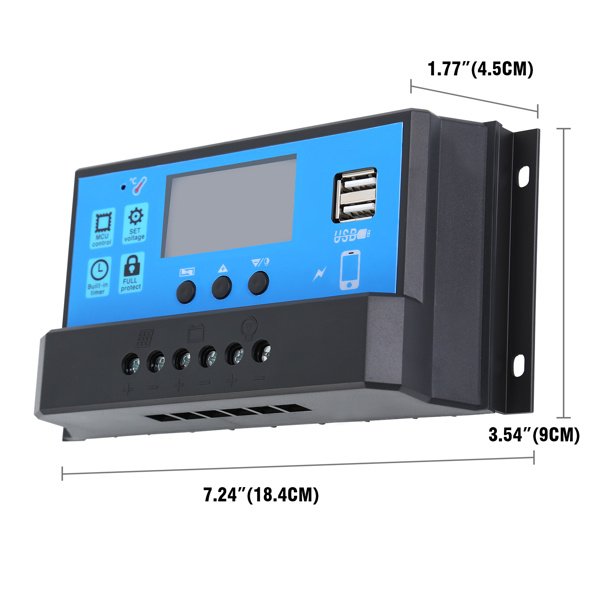

  • Size: 180*90*45mm
  • Weight: 290g
  • (Note: Floating charge voltage/discharge cut-off voltage/discharge recovery voltage Only for 12V system, if using 24V system, please set relevant parameters x2.)




The package includes:



  • 1 x 60A Solar charge controller
  • 1 x User Manual






太阳能控制器60A-14太阳能控制器60A-15太阳能控制器60A-16太阳能控制器60A-17太阳能控制器60A-18太阳能控制器60A-19太阳能控制器60A-20太阳能控制器60A-21太阳能控制器60A-22太阳能控制器60A-23太阳能控制器60A-24太阳能控制器60A-25
